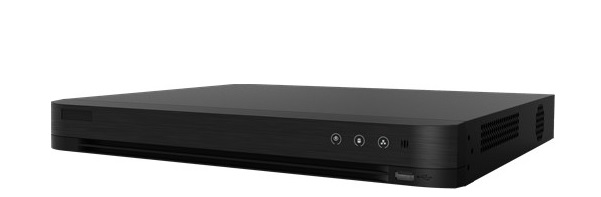

Đầu ghi hình Hybrid TVI-IP 8 kênh HIKVISION DS-7208HUHI-K2(S)
- Mã sản phẩm: DS-7208HUHI-K2S
- 8 channels and 2 HDDs 1U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Digitechjsc cam kết
100% sản phẩm chính hãng, đầy đủ CO, CQ
100% giá cạnh tranh so với thị trường
Chính sách bán hàng và bảo hành
Giao hàng trên toàn quốc
Hỗ trợ các đại lý và dự án
Bảo hành, đổi trả nhanh chóng
Hỗ trợ kỹ thuật chuyên nghiệp
Chính sách hậu mãi đầy hấp dẫn
Đầu ghi hình HIKVISION Hybrid TVI-IP 8 kênh DS-7208HUHI-K2(S)
- 8 channels and 2 HDDs 1U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 16
Đặc tính kỹ thuật
|
Model |
DS-7208HUHI-K2(S) |
|
Recording |
|
|
Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
|
Encoding Resolution |
8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
|
Frame Rate |
Main stream: 8 MP@8fps/ 5 MP@12fps/ 4MP@15fps/ 3MP@18fps,1080p/ 720p/ WD1/ 4CIF/ VGA/ CIF@25fps(P)/ 30fps (N) |
|
Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N) |
|
|
Video Bit Rate |
32 Kbps to 10 Mbps |
|
Dual Stream |
Support |
|
Stream Type |
Video, Video & Audio |
|
Audio Compression |
G.711u |
|
Audio Bit Rate |
64 Kbps |
|
Video And Audio |
|
|
IP Video Input |
8-ch (up to 16-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
|
Analog Video Input |
8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
|
AHD Input |
5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
|
HDCVI Input |
4 MP, 1080p25, 1080p30, 720p25, 720p30 |
|
CVBS Input |
PAL/NTSC |
|
Audio Input |
4-ch, RCA (2.0 Vp-p, 1 KΩ) |
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
|
Synchronous Playback |
8-ch |
|
HDTVI Input |
8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 |
|
VGA/HDMI Output |
VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
HDMI: 1-ch, 4K (3840 × 2160)/30Hz, ,2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
|
CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω) |
|
Network |
|
|
Remote Connections |
64 |
|
Network Protocols |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
|
Network Interface |
1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
|
Auxiliary Interface |
|
|
SATA |
2 SATA interfaces |
|
Capacity |
Up to 10 TB capacity for each disk |
|
Alarm In/Out |
08-Apr |
|
USB Interface |
Front panel: 1 × USB 2.0,Rear panel: 1 × USB 3.0 |
|
Serial Interface |
RS-485 (half-duplex) |
|
General |
|
|
Power Supply |
12VDC |
|
Working Temperature |
-10 °C to +55 °C (+14 °F to +131 °F) |
|
Working Humidity |
10% to 90% |
|
Dimensions (W × D × H) |
380 × 320 × 48 mm |
|
Consumption (Without HDD) |
≤ 20 W |
|
Weight |
≤ 1.78 kg |
- 8 channels and 2 HDDs 1U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
