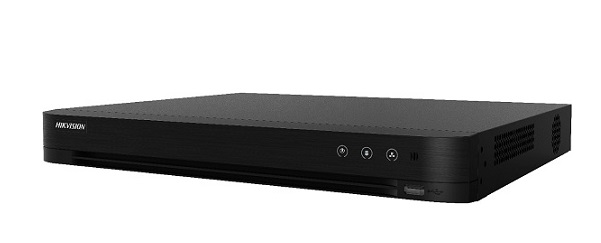

Đầu ghi hình Hybrid TVI-IP 8 kênh TURBO 5.0 HIKVISION iDS-7208HQHI-M2/S

Model

iDS-7208HQHI-M2/S

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;

Perimeter Protection

Human/Vehicle Analysis

Up to 4-ch

Recording

Video compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding resolution

Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access:
4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps
For 1080p stream access:
1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps(N)

Sub-stream:
WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)

Video bitrate

32 Kbps to 6 Mbps

Dual stream

Support

Stream type

Video, Video & Audio

Audio compression

G.711u

Audio bitrate

64 Kbps

Video and Audio

IP video input

2-ch (up to 10-ch)
Enhanced IP mode on: 4-ch (up to 12-ch), each up to 4 Mbps

Up to 6 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog video input

8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI input

4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
*: The 3 MP signal input is only available for channel 1/2 of iDS-7208HQHI-M2/S, and for channel 1/2/3/4 of iDS-7216HQHI-M2/S.

AHD input

4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps

HDCVI input

4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps

CVBS input

PAL/NTSC

CVBS output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

HDMI/VGA output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output

Audio input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

8-ch via coaxial cable

Audio output

1-ch, RCA (Linear, 1 KΩ)

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous playback

8-ch

Network

Remote connection

64

Network protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Network interface

1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Wi-Fi

Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary interface

SATA

2 SATA interfaces, up to 10 TB capacity for each disk

Serial interface

RS-485 (half-duplex)

USB interface

Front panel: 1 × USB 2.0;
Rear panel: 1 × USB 2.0

General

Power supply

12 VDC, 2.5 A

Consumption (without HDD)

≤ 30 W

Working temperature

-10°C to 55 °C (14 °F to 131 °F

Working humidity

10% to 90%

Dimension (W × D × H)

380 × 320 × 48 mm

Weight (without HDD)

≤ 1.78 kg
