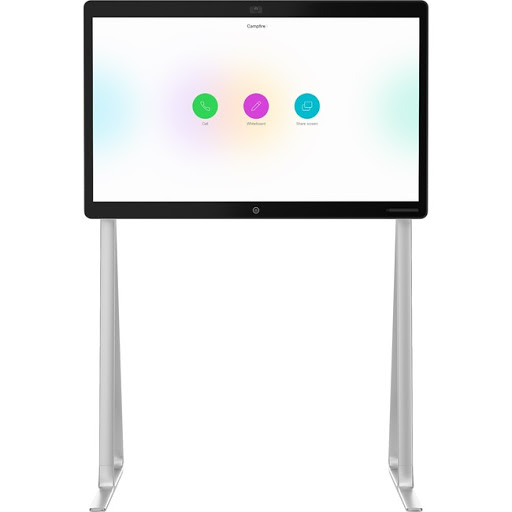

Cisco Webex Board 55S (CS- BOARD55S-G-K9)

Mã sản phẩm

CS-BOARD55S-G-K9

Software

Cisco Webex Room OS, provisioned by the Cisco Webex in the cloud

Components

Fully integrated unit is delivered with:

●  Multi-touch 55-inch LED display

●  4K camera

●  12-microphone array

●  Speakers

●  White boarding pen

Display

●  Edge LED LCD – 55-inch 4K, 350 nits, 16:9

●  Viewing angle: +- 89 degrees (all directions)

●  Number of colors: 1.07 billion (10 bit)

●  Contrast: 1:4000

●  Response time: 5.5 ms

User interface

●  Capacitive touch

●  Protective glass with optical bonding

●  Multi-touch

Inputs and outputs

●  HDMI input

●  Home button

●  3.5-mm mini jack audio out (line out)

●  USB-C (future use)

●  USB micro (service)

Camera overview

●  Fixed lens, infinite focus

●  F-value: 2.8

●  4Kp60

●  Horizontal Field Of View (HFOV): 83 degrees

●  Vertical Field Of View (VFOV): 55 degrees

●  Camera mounted tilted: -25 degrees

Audio system

●  12-element microphone array (with intelligent voice tracking)

●  Integrated voice-optimized speakers

Network

●  Ethernet (RJ-45) 100/1000 Mbps

●  Wi-Fi 802.11a/b/g/n; 802.11ac (2.4 and 5 GHz)

●  IPv4 Dynamic Host Configuration Protocol (DHCP)/static

●  IPv6 (both static and stateless address auto-configuration)

●  Network Time Protocol (NTP)

●  HTTP Proxy support (for signaling, not media)

●  Inspecting TLS Proxy supported

●  Cisco Discovery Protocol (CDP)

●  802.1X network authentication (Passphrase or X.509 client certificate)

●  802.1Q virtual LAN

●  802.1p (Qos and Class of Service [CoS])

User controls

●  Control Cisco Webex Board directly from the touchscreen or using the Cisco Webex Teams app

Language support

●  English, Spanish, German, French, French Canadian, Portuguese, Japanese, Czech, Danish, Dutch, Norwegian, Swedish, Latin American Spanish, Italian, Finnish, Polish, Turkish

●  Additional languages to be supported in future software release

Physical dimensions (H x W x D)

●  32.1 x 50.5 x 1.9 in (814 x 1283 x 50 mm)

Weight

●  87.7 lb (39.8 kg)

Physical dimensions and weight of packaging (H x W x D)

Main unit

●  Package size: 36.2 x 55.7 x 7.5 in (919 x 1416 x 191 mm)

●  Weight: 88 lb (39.8 kg)

●  Shipping weight (including packaging): 101 lb (45.8 kg)

Floor Stand (New Design)

●  Package size: 40.7 x 56.1 x 6.8 in (1034 x 1426 x 172 mm)

●  Weight: 34.8 lb (15.8 kg)

●  Shipping weight (including packaging): 48.3 lb (21.9 kg)

Wall Stand (New Design)

●  Package size: 36.8 x 51.6 x 4.7 in (934 x 1311 x 119 mm)

●  Weight: 30.9 lb (14 kg)

●  Shipping weight: 30.8 lb (14 kg)

Wall Mount Kit

●  Consolidated package size: 10 x 54.5 x 2 in (253 x 1386 x 51 mm)

●  Weight: 11 lb (5 kg)

●  Shipping weight: 13.2 lb (6 kg)

Cisco Webex Board and the selected mounting option will be shipped in a consolidation pack on a pallet. The dimensions above describe each of the individual boxes within the consolidation packaging.

Power

●  Autosensing power supply

●  100 to 240 VAC, 50 to 60 Hz

●  Power consumption (Max 4.6A)

◦   Standby: 33 Watts

●  Idle or in-use: 170 Watts

System management

Cisco Webex Board is managed in the administrator portal in Cisco Webex, giving system status and overview, activation, configuration, metrics, and troubleshooting.

Operating temperature and humidity

0° to 35°C (32° to 95°F) at relative humidity 10% to 90% (noncondensing)

Approvals and compliance

Regulatory compliance

●  Directive 2014/30/EU (EMC Directive)

●  Directive 2014/53/EU (Radio Equipment Directive)

●  Directive 2011/65/EU (RoHS)

●  Directive 2002/96/EU (WEEE)

●  NRTL approved (Product Safety)

●  FCC Listed (Radio Equipment)

Standards

●  Radio: EN 300 328, EN 301 893, EN 300 440

●  EMC: EN 301 489-1 & -17, EN 55032 - Class A, EN 55024

●  Safety: EN 60950-1, EN 62479, EN 62311 (for the radio versions)

●  FCC CFR 47 Part 15B (EMC) - Class A

●  FCC CFR 47 Part 15C (RF)

●  FCC CFR 47 Part 15E (R)

Please check product approval status database https://www.ciscofax.com/ for approval documents per country.

System requirements

●  Cisco Webex Board is connected to the Cisco Webex in the cloud service using RESTful APIs. Communication with other Webex Boards, Webex Teams apps, or other third-party solutions is provided through the Cisco Webex in the cloud.

●  Communication with Cisco Webex in the cloud uses the H.264 codec for video and the OPUS codec for audio.

●  Real-time media (voice, video, and screen sharing) is encrypted using the Secure Real-Time Transport Protocol (SRTP); end-to-end encryption uses Advanced Encryption Standard (AES) 128, AES 256, SHA1, SHA256, and RSA.

Bandwidth requirements

Minimum bandwidth:

●  720p30 from 768 Kbps

●  1080p30 from 1.72 Mbps

Maximum bandwidth:

●  Transmit: 4.3 Mbps

●  Receive: 10 Mbps

Video inputs

1 HDMI for local presentation or sharing in meetings

Supports formats up to maximum 4K (3840 x 2160)

Frame rate of 60 fps for up to 1080p and 30 fps for 2160p

Extended Display Identification Data (EDID)

Presentation capabilities

●  Local presentation up to 4K

●  Audio over HDMI

Live video resolutions (encode/decode) – main video and presentation sharing

Main video:

●  Up to 1920 x 1080@30 (HD1080p)

Presentation sharing:

●  Up to 1920 x 1080@30 (HD1080p)

Audio features

●  High-quality 20-kHz audio

●  Acoustic echo cancellation

●  Automatic Gain Control (AGC)

●  Automatic noise reduction

●  Active lip synchronization

●  Microphone array with intelligent voice tracking capabilities
