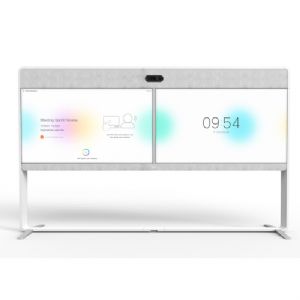

Cisco Webex Room 55 Dual (CS-ROOM55D-K9)

Mã sản phẩm

CS-ROOM55D-K9

Feature/Functionality

Form Factor

Dual 55-inch screen integrated systems

Category

Collaboration Devices - Room System

Key Features

Cisco Webex Room 55 includes camera, codec, display, speaker system, and microphones integrated in a single device, and is optimized for rooms that seat up to seven people. It is an all-in- one system that’s easy to install, use, deploy, and manage. Room 55 has the Cisco Webex Room Kit and Room 55 Dual has the Room Kit Plus as their base technologies, bringing new capabilities such as speaker tracking, best overview, automatic wake-up, and people count to enable even smarter meetings, smarter presentation capabilities, and smarter room and device integrations.

Supports:
 • Smart meetings: Powerful, integrated cameras deliver intelligent view capabilities,
such as automatic framing and speaker tracking
 • Smart presentations: Dual screens, dual content sources, wireless sharing, and
4K content make for great presentations
 • Smart integrations: People count for usage metrics and resource allocation;
tight integrations with screens for enhanced functionalities
 • Registration flexibility on premises or to Cisco Webex in the cloud

Screens

2x 55-inch (1.4m) LCD monitor, LED backlight
 • Resolution: 3840 x 2160 (16:9)
 • Contrast ratio: typical 1100:1
 • Viewing angle: +/- 178 degrees
 • Response time: typical 8 ms
 • Brightness: typical 500 cd/m2

Camera

5x digital zoom (3 tele-lenses, each with 50° horizontal field of view)
UltraHD Camera with 5K sensor
83° horizontal field of view 51.5° vertical field of view Resolution: up to 1080p60
f/2.0 aperture
Auto-framing (audio + face detect)

Recommended Number of Participants

Up to 12 people

Video Quality

Up to 1080p60

Video Standards

H.264
H.265

Video Frame Rate

Up to 60 fps

Supported PC Resolutions (Content Sharing)

2160p30
4kp5

Software Supported

Cisco Collaboration Endpoint Software Version 9.4 or later
Webex RoomOS

Signaling Protocol

VCS: H.323 and SIP
CUCM: SIP
Cisco Webex: HTTP, REST APIs

Peripherals Supported

Cisco Touch 10

Bandwidth Consumption

H.264: from 768 kbps to 6000 kbps

Audio Standards

G.711
G.722
G.722.1
G.729
AAC-LD
Opus

Audio Features

High-quality 20 kHz audio
Prepared for subwoofer (line out)
Automatic Gain Control (AGC)
Automatic noise reduction
Active lip synchronization

Suggested Use Cases

Medium to large-sized rooms

Physical Dimensions (WxHxD)

Room 55 Dual with floor stand:
 • Main unit: 99.1 x 68.2 x 36.3 in (2518 x 1731 x 920 mm)
 • Weight, monitor modules: 233.7 lb (106 kg)
 • Weight, floor stand: 66.1 lb (30 kg)
 • Weight: 337 lb (153 kg)

Room 55 Dual with wall mount:
 • Main unit: 99.1 x 42.2 x 5.9 in (2518 x 1071 x 150 mm)
 • Height: 42.2 in. (1071 mm)
 • Depth: 5.9 in. (150 mm)
 • Weight, monitor modules: 233.7 lb (106 kg)
 • Weight, wall mount: 79.4 lb (36 kg)
 • Weight: 351 lb (159 kg)
