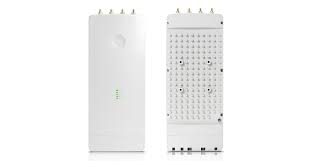

Cambium ePMP 3000

Specifications

Spectrum

Channel Spacing

Configurable on 5 MHz increments

Frequency Range

4910 – 5980 MHz (exact frequencies as allowed by local regulations)

Channel Width

20 | 40 | 80 MHz

Interface

MAC
(Media Access Control) Layer

Cambium Proprietary

Physical Layer

4x4 MUMIMO/OFDM

Ethernet Interfaced

100/1000BaseT, rate auto negotiated, 802.3at compliant & Aux SFP port

Powering Methods Supported

56 V PoE (included), standard 802.3at PoE Supply, or CMM5 with 56 V and 5 pin to 7 pin cross over cable adapter

Protocols Used

IPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping

Network Management

HTTPs, SNMPv2c, SSH

VLAN

802.lQ with 802.1p priority

Performance

Subscribers per Sector

Up to 120

Nominal Receive Sensitivity
(w/FEC) @20MHz Channel

MCS 0, -92 MCS 8 supported by Wi-Fi -68

Nominal Receive Sensitivity
(w/FEC) @40MHz Channel

MCS0, -89 MCS9, -64

Nominal Receive Sensitivity
(w/FEC) @80 MHz Channel

MCS0, -86, MCS9 - 61

Modulation Levels (Adaptive)

MCS0 (BPSK) to MCS 9 (256 QAM 5/6)

GPS Synchronization

Yes, via Internal GPS or Cambium Sync

Quality of Service

Three-level priority (Voice, High, Low)

DSO

Dynamic Spectrum Optimization. Ability to change channels based on interference detection on current channel

Fast DFS

Change to alternate radar free channel with background availability check

Link Budget

Antenna

Sector Antenna (C050910D301A ) Available

Transmit Power Range

0 to +32 dBm (combined, to regional EIRP limit) (2 dB interval)

Physical

Sector Antenna Connection

4 x 50 ohm, RP (reverse polarity) SMA

Beamforming Antenna Connection

2 x 50 ohm, RP (reverse polarity) SMA, DC coupled (powering antenna)

GPS Antenna Connection

1 x 50 ohm, RP (reverse polarity) SMA

Surge Suppression

1 Joule Integrated. C000000L033A - 56V Gigabit surge suppressor recommended for optimal surge protection

Weight

>1.3 kg

Dimensions

137 x 330 x 45 mm
