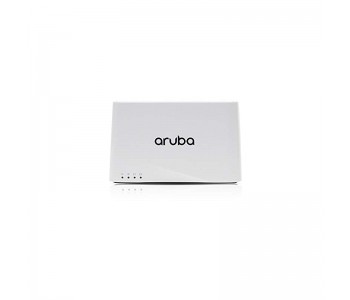

Aruba AP-203R (JY712A)

Model

Aruba AP-203R

WI-FI RADIO SPECIFICATIONS

• AP type: Indoor, flexible radio:
-5GHz 802.11ac 2x2 MIMO OR 2.4GHz 802.11n 2x2 MIMO1, or
-5GHz 802.11ac 1x1 AND 2.4GHz 802.11n 1x11
• Software-configurable radio supports 5GHz (Radio 0) and/or 2.4GHz (Radio 1)
• 5GHz: Two spatial stream Single User (SU) MIMO for up to 867Mbps wireless data rate to individual 2x2 VHT80 client devices
• 2.4GHz: Two spatial stream Single User (SU) MIMO for up to 400Mbps wireless data rate to individual 2x2 VHT40 client devices (300Mbps for HT40 802.11n client devices)
• Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per AP

WI-FI ANTENNAS

• Two integrated dual-band moderately directional antennas for 2x2 MIMO with maximum individual antenna gain of 4.9dBi in 2.4GHz and 6.0dBi in 5GHz. Built-in antennas are optimized for vertical orientation of the AP. The horizontal beamwidth is roughly 120 degrees.
- Combining the patterns of each of the antennas of the MIMO radios (in 2x2 mode), the peak gain of the effective per-antenna pattern is 2.3dBi in 2.4GHz and 3.4dBi in 5GHz.

OTHER INTERFACES

• Uplink: 10/100/1000BASE-T Ethernet (RJ-45, back)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
- PoE-PD (input): 48 Vdc (nominal) 802.3af/at PoE
• Local: 10/100/1000BASE-T Ethernet (RJ-45, bottom)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
• Passive pass-through interface (two RJ-45, back and bottom)
- USB host interface (Type A connector)
- For Aruba LS-BT1USB BLE radio modules only
• Visual indicators (LEDs):
- Power/system status
- Radio status
- Local network port status
• Reset/LED control button (“paperclip access”)
- Factory reset (when activated during device power up)
- LED control: toggle off/normal
• Serial console interface (custom, uUSB physical jack)

POWER SOURCES AND CONSUMPTION

• The AP is powered through Power over Ethernet (PoE)
• An optional PoE power injector is sold separately
• Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af/802.3at compliant source
• Maximum (worst-case) power consumption: 7.4W
• Includes up to 100mW for an attached USB BLE module
• Maximum (worst-case) power consumption in idle mode: 3.9W

MECHANICAL

• Dimensions/weight (unit, including single-gang wall box mount plate):
- 86mm (W) x 26.5mm (D) x 140mm (H)
- 225g
• Dimensions/weight (shipping):
- 115mm (W) x 47mm (D) x 165mm (H)
- 290g

ENVIRONMENTAL

• Operating:
- Temperature: 0° C to +40° C (+32° F to +104° F)
- Humidity: 5% to 93% non-condensing
• Storage and transportation:
- Temperature: -40° C to +70° C (-40° F to +158° F)

POWER SOURCES AND CONSUMPTION

• The AP supports direct AC power: 90V – 265V, 47Hz – 63Hz.
- Note that the unit does not include an AC power cord (IEC C7 plug). A compatible region-specific cord should be selected and added when ordering the AP.
• Maximum (worst-case) power consumption: 8.2W.
- Excludes power consumed by external USB and/or PoE-PD device (and internal losses); this could add up to 5.7W for a 5W/1A USB device and up to 17.2W for a max load (15.4W) 802.3af PoE-PD device
• Maximum (worst-case) power consumption in idle mode: 5.0W

MECHANICAL

• Dimensions/weight (unit, with cable cover):
- 155mm (W) x 50mm (D) x 95mm (H)
- 320g (AP-203R), 340g (AP-203RP)
• Dimensions/weight (shipping):
- 224mm (W) x 159mm (D) x 78mm (H)
- 510g (AP-203R), 590g (AP-203RP)

ENVIRONMENTAL

• Operating:
- Temperature: 0° C to +40° C (+32° F to +104° F)
- Humidity: 5% to 93% non-condensing
• Storage and transportation:
- Temperature: -40° C to +70° C (-40° F to +158° F)
