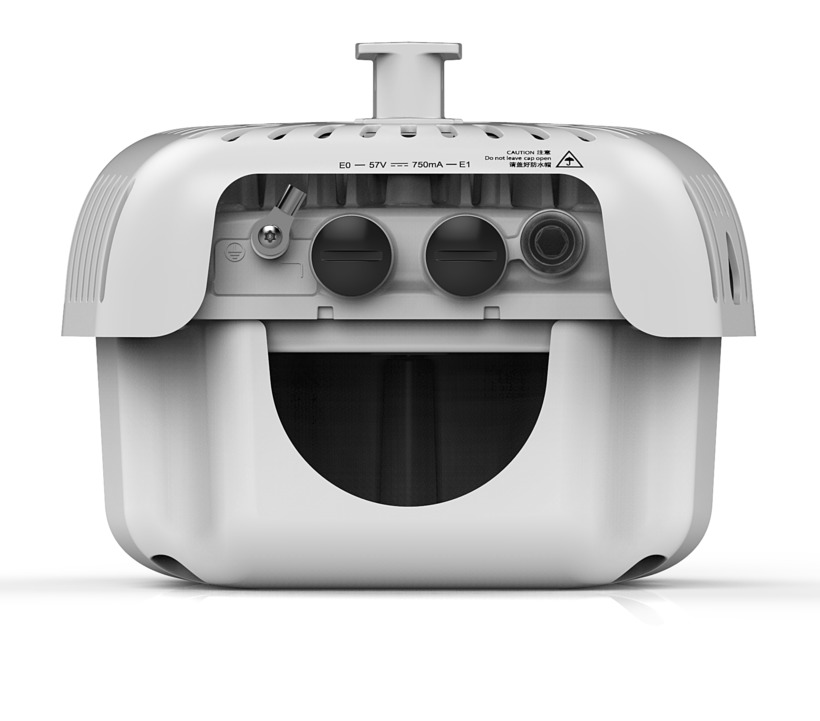

Aruba AP-574 (R4H12A)

Model

Aruba AP-574

Hardware Variants

- 5 GHz: Four Nf connectors for external antenna operation
- 2.4 GHz Two Nf connectors for external antenna operation
- BLE/Zigbee: Integrated omnidirectional antenna and peak gain of 4.2dBi

Wi-Fi Radio Specifications

• AP type: Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 4x4 MIMO and 2.4 GHz 2x2 MIMO
• Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
5 GHz:
• Four spatial stream Single User (SU) MIMO for up to 4.8 Gbps wireless data rate to individual 4SS HE160 Wi-Fi 6 client device (max)
• Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate to individual 2SS HE80 Wi-Fi 6 client device (typical)
• Four spatial stream Multi User (MU) MIMO for up to 4.8 Gbps wireless data rate to up to four 1SS or two 2SS HE160 Wi-Fi 6 DL-MU-MIMO capable client devices simultaneously (max)
• Four spatial stream Multi User (MU) MIMO for up to 2.4 Gbps wireless data rate to up to four 1SS or two 2SS HE80 Wi-Fi 6 DL-MU-MIMO capable client devices simultaneously (typical)
2.4 GHz
• Two spatial stream Single User (SU) MIMO for up to 575 Mbps wireless data rate to individual 2SS HE40 Wi-Fi 6 client device (max)
• Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 Wi-Fi 6 client device (typical)
• Two spatial stream Multi User (MU) MIMO for up to 575 Mbps wireless data rate to up to two 1SS HE40 Wi-Fi 6 DLMU-MIMO capable client devices simultaneously (max)
• Two spatial stream Multi User (MU) MIMO for up to 287 Mbps wireless data rate to up to two 1SS HE20 Wi-Fi 6 DLMU-MIMO capable client devices simultaneously (typical)
• Support for up to 512 associated client devices per radio, and up to 16 BSSIDs per radio

POWER

• Maximum (worst-case) power consumption:
- POE powered (dual ports): 32.0W
- POE powered (single port, full function): 26.1W
• Maximum (worst-case) power consumption in idle mode: 14.0W (single POE) or 16.0W (dual POE)
• Maximum (worst-case) power consumption in deep-sleep mode: 2.9W (single POE) or 3.9W (dual POE)
• The AP supports Power over Ethernet (POE; on port E0 and/or E1)
• When POE power is supplied to both Ethernet ports, the AP can be configured to combine or prioritize power sources
• Power sources are sold separately; see the ordering Information section below for details
• When powered by 1x 802.3at (class 4) POE and with the IPM feature disabled, the AP will disable the other Ethernet port. In the same configuration but with IPM enabled, the AP will start up in unrestricted mode, but may dynamically apply restrictions depending on the POE budget and actual power. The feature restrictions and order can be programmed.
• Operating the AP with single or dual 802.3af (class 3 or lower) POE source is not supported.

ADDITIONAL INTERFACES

• E0: HPE SmartRate port (RJ-45)
- Auto-sensing link speed (100/1000/2500BASE-T) and MDI/MDX
- 2.5Gbps speed complies with NBase-T and 802.3bz specifications
- PoE-PD: 48Vdc (nominal) 802.3at/bt (Class 4 or higher)
- 802.3az Energy Efficient Ethernet (EEE)
• E1: 100/1000BASE-T (RJ-45)
- Auto-sensing link speed and MDI/MDX
- 802.3az Energy Efficient Ethernet (EEE)
- PoE-PD: 48Vdc (nominal) 802.3at/bt (Class 4 or higher)
• Link Aggregation (LACP) support between both network ports for redundancy and increased capacity
• Bluetooth 5 and 802.15.4 radio
- 2.4 GHz
- Bluetooth 5: up to 8dBm transmit power and -95dBm receive sensitivity
- Zigbee: up to 8 dBm transmit power and -97dBm receive sensitivity
- Up to 4dBm transmit power (class 2) and -91 dBm receive sensitivity
• Visual indicator (multi-color LED): For system and radio status
• Reset button: Factory reset (during device power up)
• USB-C console interface

MECHANICAL

• Dimensions/weight (excluding mount):
- 24 cm (W) x 24 cm (D) x 19 cm (H)/9.4” (W) x 9.4” (D) x 7.5” (H)
- 2.7kg/6.0lbs

ENVIRONMENTAL

• Operating:
- Temperature: -40° C to +65° C (-40° F to +149° F) with full solar loading
- Humidity: 5% to 93% non-condensing internal
- Rated for operation in all weather conditions
• Storage and transportation:
- Temperature: -40° C to +70° C (-40° F to +158° F)
• Operating Altitude: 3,000 m
• Water and Dust
- IP66/67
