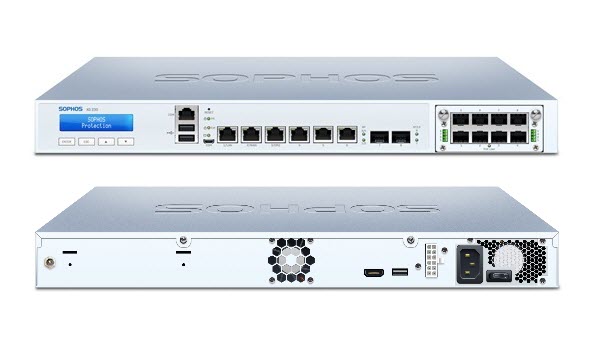

Sophos XG 230

Model Product

Sophos XG 230

Performance

Firewall throughput

32,000 Mbps

Firewall IMIX

14,800 Mbps

IPS throughput

4,900 Mbps

NGFW throughput

4,500 Mbps

Threat Protection throughput

1,000 Mbps

Concurrent connections

6,570,000

New connections/sec

108,900

IPsec VPN throughput

2,100 Mbps

Xstream SSL decryption
+ Threat Protection

280 Mbps

Xstream SSL Concurrent connections

18,432

Physical interfaces

Storage (local quarantine/logs)

integrated SSD

Ethernet interfaces (fixed)

- 6 GbE copper (incl. 2 bypass pairs)
- 2 GbE SFP

No. of expansion slots

1

Flexi Port modules (optional)

- 8 port GbE copper
- 8 port GbE SFP
- 2 port 10 GbE SFP+
- 4 port 10 GbE SFP+
- 2 port 40 GbE QSFP+
- 4 port GbE PoE
- 8 port GbE PoE
- 4 port GE copper LAN bypass

Connectivity Modules (optional)

- SFP DSL module (VDSL2)
- SFP/SFP+ Transceivers

I/O ports (rear)

- 2 x USB 3.0 (front)
- 1 x Micro USB (front)
- 1 x USB 3.0 (rear)
- 1 x COM (RJ45) (front)
- 1 x HDMI (rear)

Display

Multi-function LCD module

Power supply

- Internal auto-ranging 100-240VAC, 50-60 Hz
- Redundant PSU optional (external)

Physical specifications

Mounting

1U rack mount (2 rackmount ears included)

Dimensions
Width x Depth x Height

438 x 344.4 x 44 mm
17.24 x 13.56 x 1.75 inches

Weight

5.2 kg / 11.46lb (unpacked)
7.7 kg / 16.98 lbs (packed)

Environment

Power consumption

21W, 72 BTU/hr (idle)
41W, 141 BTU/hr (full load)

Operating temperature

0-40°C (operating)
-20 to +80°C (storage)

Humidity

10%-90%, non-condensing

Product Certifications

Certifications

CB, UL, CE, FCC Class A, ISED, VCCI, RCM, CCC, KC, BIS
