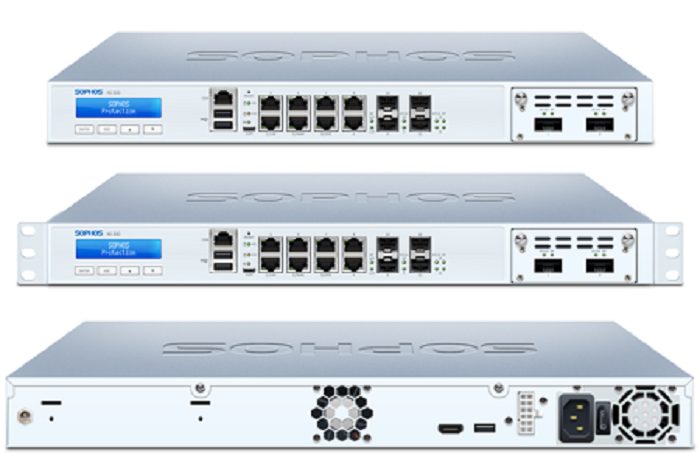

Sophos XG 330

Model Product

Sophos XG 330

Performance

Firewall throughput

38,000 Mbps

Firewall IMIX

24,200 Mbps

IPS throughput

10,000 Mbps

NGFW throughput

9,300 Mbps

Threat Protection throughput

2,100 Mbps

Concurrent connections

10,490,000

New connections/sec

140,000

IPsec VPN throughput

3,940 Mbps

Xstream SSL decryption
+ Threat Protection

560 Mbps

Xstream SSL Concurrent connections

55,296

Physical interfaces

Storage (local quarantine/logs)

integrated SSD

Ethernet interfaces (fixed)

- 8 GbE copper (incl. 2 bypass pairs)
- 2 GbE SFP
- 2 10GbE SFP+

No. of expansion slots

1

Flexi Port modules (optional)

- 8 port GbE copper
- 8 port GbE SFP
- 2 port 10 GbE SFP+
- 4 port 10 GbE SFP+
- 2 port 40 GbE QSFP+
- 4 port GbE PoE
- 8 port GbE PoE
- 4 port GE copper LAN bypass

Connectivity Modules (optional)

- SFP DSL module (VDSL2)
- SFP/SFP+ Transceivers

I/O ports (rear)

- 2 x USB 3.0 (front)
- 1 x Micro USB (front)
- 1 x USB 3.0 (rear)
- 1 x COM (RJ45) (front)
- 1 x HDMI (rear)

Display

Multi-function LCD module

Power supply

- Internal auto-ranging 100-240VAC, 50-60 Hz
- Redundant PSU optional (external)

Physical specifications

Mounting

1U rack mount (2 rackmount ears included)

Dimensions
Width x Depth x Height

438 x 405.5 x 44 mm
17.24 x 15.96 x 1.75 inches

Weight

5.8 kg / 12.78 lb (unpacked)
8.8 kg / 19.4 lbs (packed)

Environment

Power consumption

36W, 122 BTU/hr (idle)
54W, 184 BTU/hr (full load)

Operating temperature

0-40°C (operating)
-20 to +80°C (storage)

Humidity

10%-90%, non-condensing

Product Certifications

Certifications

CB, UL, CE, FCC Class A, ISED, VCCI, RCM, CCC, KC, BIS
