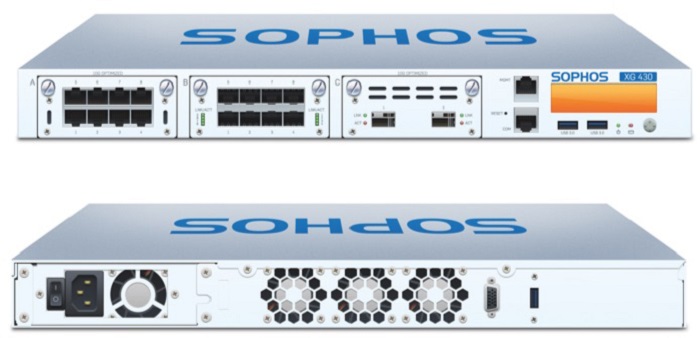

Sophos XG 430

Model Product

Sophos XG 430

Performance

Firewall throughput

55,000 Mbps

Firewall IMIX

26,900 Mbps

IPS throughput

10,800 Mbps

NGFW throughput

10,000 Mbps

Threat Protection throughput

2,200 Mbps

Concurrent connections

13,640,000

New connections/sec

146,000

IPsec VPN throughput

5,000 Mbps

Xstream SSL decryption
+ Threat Protection

600 Mbps

Xstream SSL Concurrent connections

102,400

Physical interfaces

Storage (local quarantine/logs)

integrated SSD

Ethernet interfaces (fixed)

- 8 GbE copper (incl. 2 bypass pairs)
- 2 10GbE SFP+

No. of Flexi Port slots

2

Flexi Port modules (optional)

- 8 port GbE copper
- 8 port GbE SFP
- 2 port 10 GbE SFP+
- 4 port 10 GbE SFP+
- 2 port 40 GbE QSFP+
- 4 port GbE PoE
- 8 port GbE PoE
- 4 port GE copper LAN bypass

Connectivity Modules (optional)

- SFP DSL module (VDSL2)
- SFP/SFP+ Transceivers

I/O ports (rear)

- 2 x USB 3.0 (front)
- 1 x Micro USB (front)
- 1 x USB 3.0 (rear)
- 1 x COM (RJ45) (front)
- 1 x IPMI (front)
- 1 x HDMI (rear)

Display

Multi-function LCD module

Power supply

- Internal auto-ranging 100-240VAC, 50-60 Hz
- Redundant PSU optional (external)

Physical specifications

Mounting

1U rack mount (sliding rails incl.)

Dimensions
Width x Depth x Height

438 x 507.7 x 44 mm
17.24 x 19.99 x 1.75 inches

Weight

7.6 kg / 16.76 lbs (unpacked)
13.7 kg / 30.2 lbs (packed)

Environment

Power consumption

28W, 96 BTU/hr (idle)
79W, 270 BTU/hr (full load)

Operating temperature

0-40°C (operating)
-20 to +80°C (storage)

Humidity

10%-90%, non-condensing

Product Certifications

Certifications

CB, UL, CE, FCC Class A, ISED, VCCI, RCM, CCC, KC, BIS
