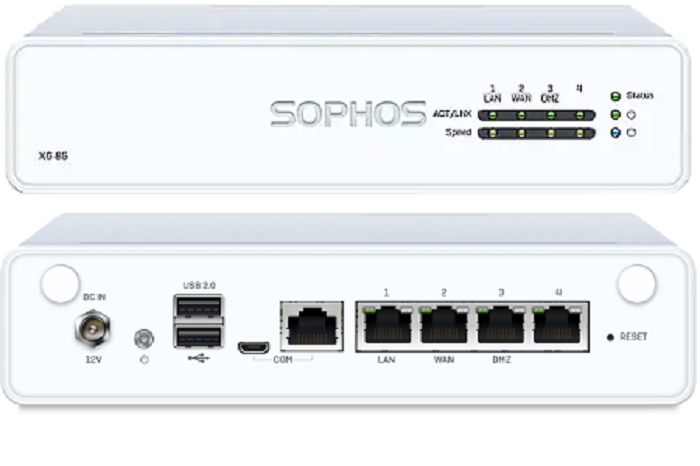

Sophos XG 86 / XG 86w

Model Product

Sophos XG 86 / XG 86w

Performance

Firewall throughput

3,100 Mbps

Firewall IMIX

850 Mbps

IPS throughput

480 Mbps

NGFW throughput

350 Mbps

Threat Protection throughput

145 Mbps

Concurrent connections

1,570,000

New connections/sec

14,500

IPsec VPN throughput

225 Mbps

Xstream SSL decryption
+ Threat Protection

75 Mbps

Xstream SSL Concurrent connections

8,192

Wireless Specification (XG 86w only)

No. of antennas

2 external

MIMO capabilities

2 x 2:2

Wireless interface

802.11a/b/g/n/ac (2.4 GHz / 5 GHz)

Physical interfaces

Storage

16 GB eMMC

Ethernet interfaces (fixed)

4 GbE copper

I/O ports (rear)

2 x USB 2.0
1 x Micro-USB
1 x COM (RJ45)

Power supply

External auto ranging DC: 12V, 100-240VAC, 24W@50-60 Hz

Physical specifications

Mounting

Rackmount kit available (to be ordered separately)

Dimensions
Width x Depth x Height

190 x 117 x 43 mm
7.48 x 4.61 x 1.69 inches

Weight

0.75 kg / 1.65 lbs (unpacked)
1.9 kg / 4.19 lbs (packed)
(w model minimally higher)

Environment

Power consumption

12W, 40.94 BTU/hr (idle)
20.4W, 69.6 BTU/hr (full load)

Operating temperature

0-40°C (operating)
-20 to +80°C (storage)

Humidity

10%-90%, non-condensing

Product Certifications

Certifications

CB, CE, FCC, ISED (IC), VCCI, RCM, UL, CCC, BIS, Anatel, KC (w-model only)
