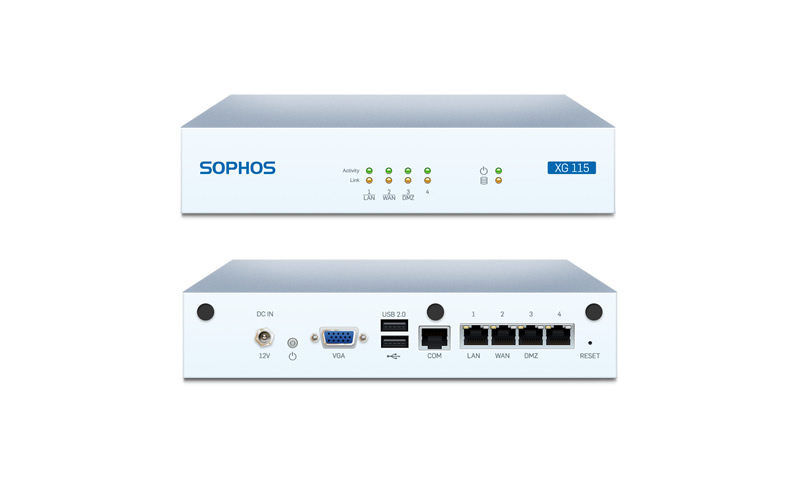

Sophos XG 115 / XG 115w

Model Product

Sophos XG 115 / XG 115w

Performance¹

Firewall throughput

4,000 Mbps

Firewall IMIX

2,700 Mbps

IPS throughput

950 Mbps

NGFW throughput

1,000 Mbps

Threat Protection throughput

375 Mbps

Concurrent connections

1,570,000

New connections/sec

19,400

IPsec VPN throughput

560 Mbps

Xstream SSL decryption
+ Threat Protection

130 Mbps

Xstream SSL Concurrent connections

8,192

Wireless Specification (XG 115w only)

No. of antennas

2 external

MIMO capabilities

2 x 2:2

Wireless interface

802.11a/b/g/n/ac (2.4 GHz / 5 GHz)

Physical interfaces

Storage

integrated SSD

Ethernet interfaces (fixed)

4 GbE copper
1 GbE SFP (shared)*

I/O ports (rear)

2 x USB 2.0
1 x Micro-USB
1 x COM (RJ45)
1 x HDMI

Power supply

External auto ranging DC: 12V, 100-240VAC, 36W@50-60 Hz
Redundant PSU optional (external)

Physical specifications

Mounting

Rackmount kit available (to be ordered separately)

Dimensions
Width x Depth x Height

245 x 157 x 44 mm
9.65 x 6.18 x 1.73 inches

Weight

1.17 kg / 2.58 lbs (unpacked)
2.4 kg / 5.29 lbs (packed)
(w models minimally higher)

Environment

Power consumption

8.88W, 30.28 BTU/hr (idle)
10.44W, 35.6 BTU/hr (full load)

Operating temperature

0-40°C (operating)
-20 to +80°C (storage)

Humidity

10%-90%, non-condensing

Product Certifications

Certifications

CB, CE, FCC, ISED (IC), VCCI, RCM, UL, CCC, BIS, Anatel, KC (w-model only)
